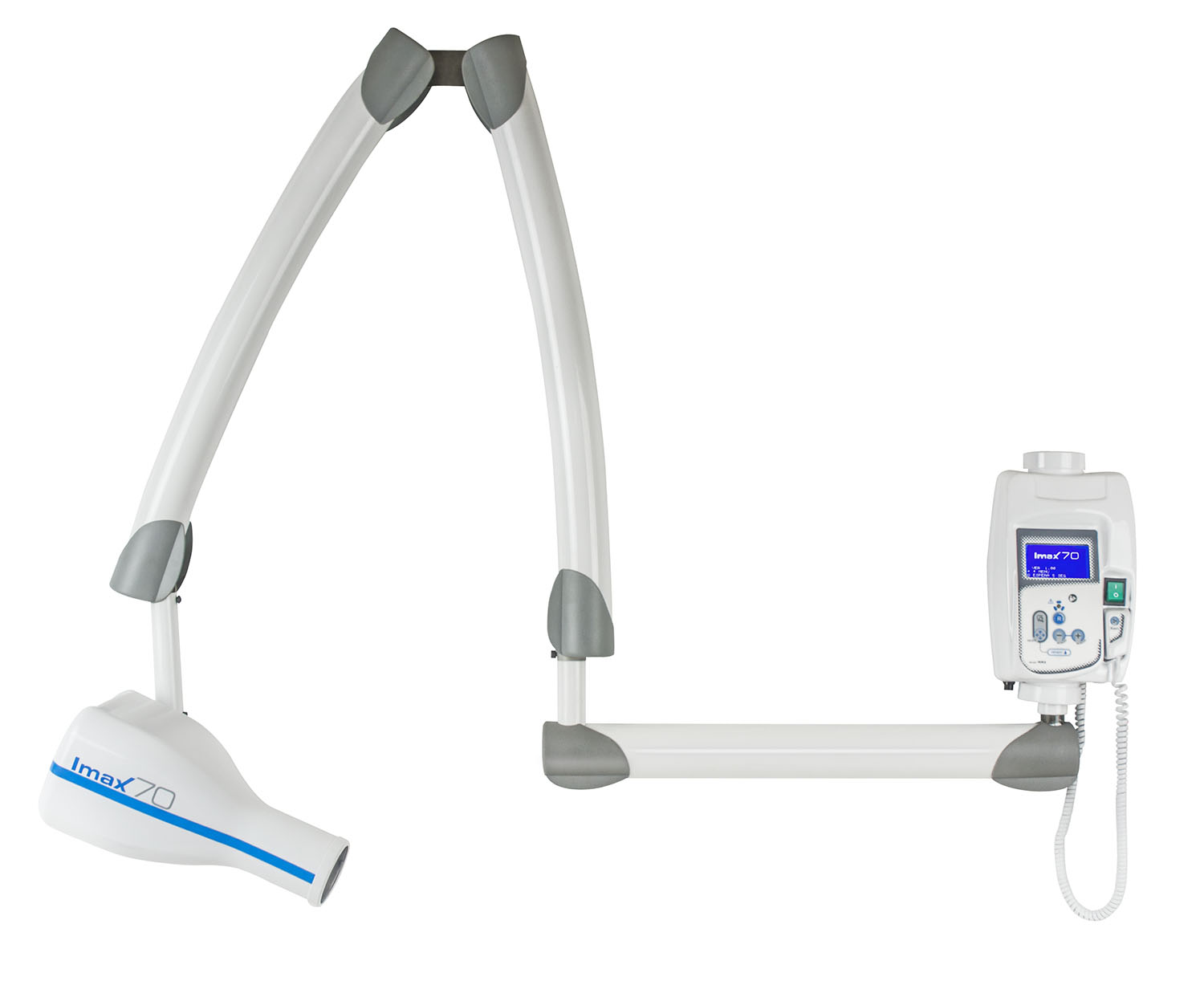

The pantographic Scissors wall mounted arm, will allow maximum operational range with extremely smooth movements and with the advantage of requiring minimal space in its rest position.
| · Main Supply 230/110 VAC . ±10% – 50/60 Hz |
|
· Consumption
4 A max – 230 VAC, 920 VA 8 A max – 110 VAC, 880 VA |
| · High Voltage 70 Kvp |
| · • Focus – Skin distance 200 mm |
| · • Lead diaphragm diameter (irremovible filter) 26 mm |
| · Irradiation Field (diam.) 60 mm |
| · X ray tube current 9mA |
| · Total Filtration Equiv a 2.0 mm Al |
| · Effective focal 0.8 mm |
| · Overrun Inmersed in oil |
| · External radiation ˂0,01 mGy/h a 100 cm distance |
· Horizontal Arm: 600 or 900 mm.
· Total Usable Length: 1700 or 2150 mm.
By the means of an advanced electronic design it allow you to select the exposure times in digital way through a keypad.
The P-100 P-100 is fully compatible with modern digital radiographic systems.
The MMX microprocessor controller with LCD Display, has preseted exposure times based on the selection of the type of film, size of the patient and tooth.
It is compatible to operate with digital radriographic systems.
