IMAX 70

back »

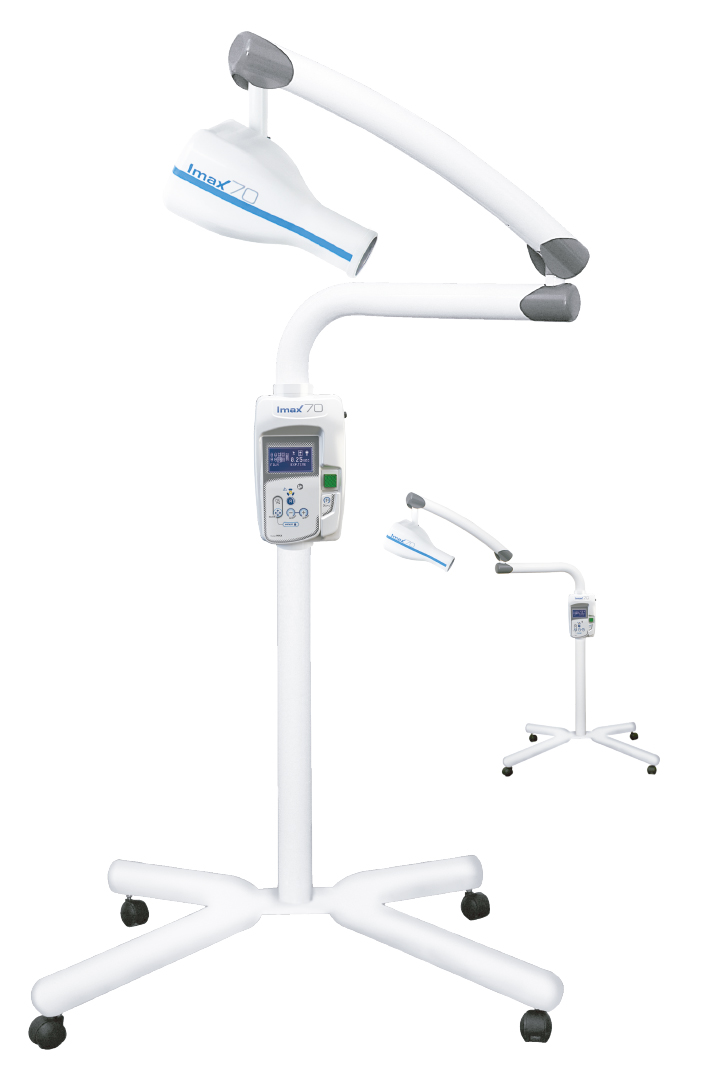

Mobile Unit

Harmony and design are combined in order to provide the maximum easyness in the positioning of the Ray Generator.

Where a mobile unit is required, the Imax has excellent stability with reduced dimensions of the base.

Download Manual

- Electrical Specifications

· Main Supply 230/110 VAC . ±10% – 50/60 Hz
· Consumption 4 A max – 230 VAC, 920 VA
8 A max – 110 VAC, 880 VA
· High Voltage 70 Kvp

- General Specifications

· • Focus – Skin distance 200 mm
· • Lead diaphragm diameter (irremovible filter) 26 mm
· Irradiation Field (diam.) 60 mm
· X ray tube current 9mA
· Total Filtration Equiv a 2.0 mm Al
· Effective focal 0.8 mm
· Overrun Inmersed in oil
· External radiation ˂0,01 mGy/h a 100 cm distance
